🔘 BUTTON TESTING PROCEDURE – ALL ROOMS

📌 OVERVIEW

Button testing is a diagnostic process used to verify that all physical buttons within a room are functioning correctly and communicating with the microcontroller.

This process can be performed on any room using the Tech PC.

💻 ACCESSING THE ROOM (TECH PC)

• Connect to the Tech PC using TeamViewer
• Navigate to the appropriate room (Example: Control Room)
• Click and highlight the room you are looking to access.

⚠️ IMPORTANT BEFORE STARTING

• Confirm no players are inside the room
• Close the room via the "Stop/Start" function.

🧪 STARTING BUTTON TEST MODE

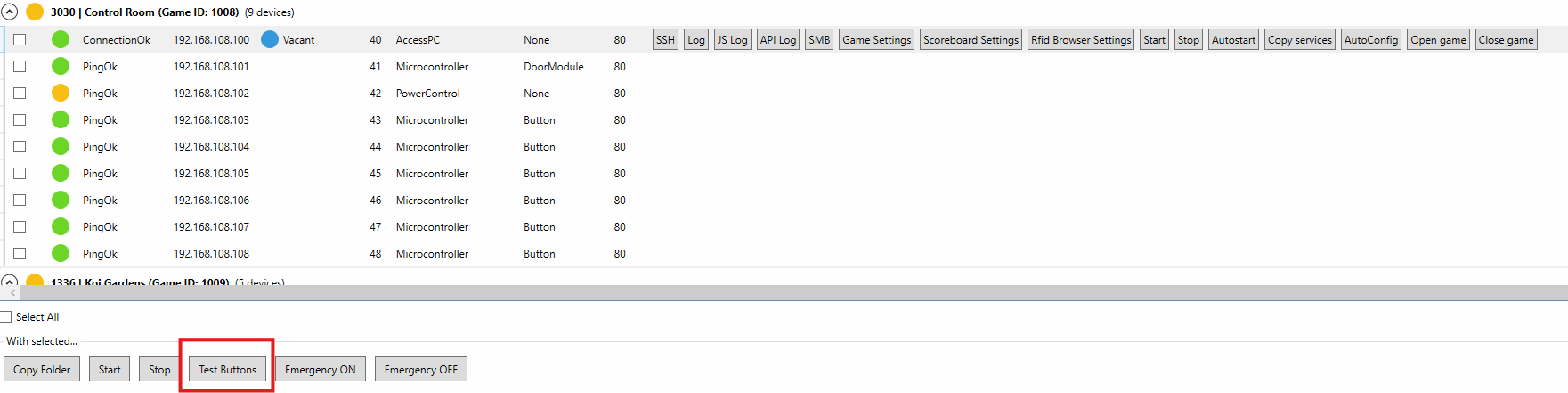

• Locate and click “TEST BUTTONS” (bottom of the screen)

• A confirmation prompt will appear:
  • “Are you sure you want to test buttons?”
• Select YES to proceed


⚙️ CONFIGURING BUTTON TEST

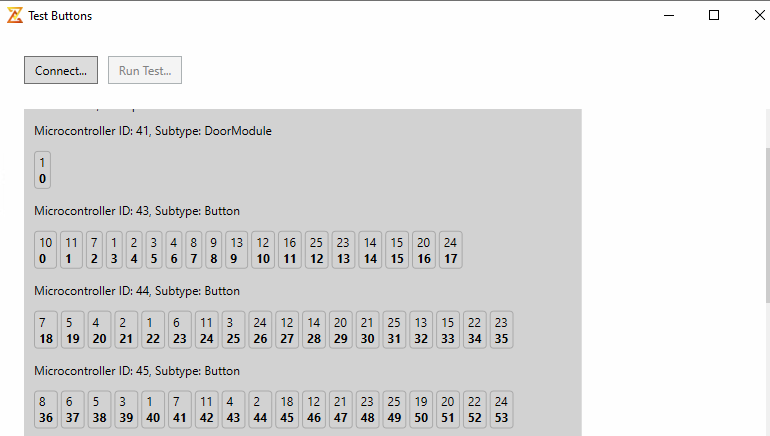

• The Button Test Configuration Window will appear

• Ensure the area/section you want to test is checked (Check STARTING BUTTON TEST MODE IMAGE)
• Click:
  • CONNECT
  • Then RUN TEST

🔍 UNDERSTANDING RESULTS

Once the test is running, button statuses will display visually:

🔴 RED (WORKING)

• Button is detected and functioning properly
• Microcontroller is receiving input
• Button will light up physically

⚪ WHITE (NOT WORKING)

• Button is NOT being detected
• Possible issues:
  • Faulty button - 5 minute fix
  • Wiring issue - 20 minute fix
  • Port issue on button board - Quick fix IF you have the board. No board will require shipment.

🔢 BUTTON IDENTIFICATION

• Bold Number = Button Number

• Number Above = Port on Button Board



Use this to:

• Identify the exact failing button
• Trace wiring or replace specific components

🛠️ NEXT STEPS (IF ISSUES FOUND)

• Physically inspect the button
• Check wiring connections
• Replace button if necessary
• Re-test after repair

🧩 NOTES

• Always re-run the test after any fix
• Ensure stable connection before testing
• If multiple buttons fail, investigate the button board or microcontroller
